Arduino Tutorial Arduino inputs
Introduction

We've done a lot so far, blinking lights, printing messages...all of that stuff is output: signals coming from the Arduino. The next step is to start playing with input, with the Arduino responding to outside events. In this lesson we will begin with the most basic kind of input, a push-button switch!

What you'll need
Assembled Arduino board, preferrably a Diecimila (or whatever the latest version is) but NG is OK too

Adafruit

$35

USB Cable. Standard A-B cable is required. Any length is OK.

Adafruit

Or any computer supply store

$5

5 Red LEDs

The brighter the better

Any electronics supply store

$3

6mm tact switch (pushbutton)

Any electronics supply store

$0.50

One 100 Ω Resistor (brown black brown gold)

Any values from 20 Ω to 220 Ω is probably OK.

Any electronics supply store

$1

Five 1KΩ Resistors (brown black red gold)

Any values from 300 Ω to 2KΩ are probably OK.

Any electronics supply store

$1

One 10KΩ Resistors (brown black orange gold)

Any value from 5KΩ to 100KΩ is probably OK.

Any electronics supply store

$1

Arduino Prototyping Shield with tiny breadboard

Adafruit
$15
+
Adafruit
$7.50

Hookup Wire

Get 22 gauge solid-core wire in red, black and some other color. Make sure its not stranded wire!

Any hardware store
What's a switch?

You're probably familiar with switches, there's tons of them in your house. One kind of switch you use every day is a light switch. A light switch is a simple device with two positions, on and off. When on, two wires are connected inside, which allows current to flow. When off, the two wires are disconnected.



On the left, the switch is open and no current flows. On the right, the switch is closed, current flows and the light turns on.


(thanks wikipedia!)

In this photo, you can see the internals of a light switch. The two wires connect to the top and bottom. The flat bar that goes verically down the middle is what is physically moved to connect or disconnect.

Light switches are great but we need something smaller. We'll be primarily using 6mm tactile button switches.

These little switches are a 1/4" on each side, cost about 25 cents, and can plug directly into a breadboard. These mechanical devices have 4 legs, which may make you think that there are 4 wires that are switched on and off, but in fact, two on each side are actually connected together inside. So really, this switch is just a 2-wire switch.

Normally, the two wires are disconnected (normally open) but when you press the little button on top, they are mechanically connected.

To get the buttons to sit better in the protoshield, you may want to straighten out the legs (just squish them with a pair of pliers) so that they look like the button on the left.

Light switch

We're going to make our first test of the pushbutton by having it turn on and off an LED light


Fig 5.1 You'll note that the schematic symbol for a pushbutton switch is a little bit different than the one above

Get out your red LED and 1.0KΩ resistor, as well as the tiny pushbutton and build the schematic onto your protoshield:


Power up the Arduino and try pressing the button. The LED should light up when the button is held down (current is able to flow) and go dark when it's released (current is not able to flow).

Switch capability

Before you try to turn a 100W lightbulb on and off using a pushbutton switch, be aware that switches have ratings that will tell you the maximum amount of current and voltage they can switch. The little switches are only rated for a few volts and milliAmps. Big switches such as wall light switches are rated for 120V and many Amperes. Make sure you choose the right switch for the job or you may accidentally cause a small fire!

These switches have the part number B3F-1000, here is a datasheet webpage for the part. There's a lot of information, but learning how to navigate these sorts of pages is rather important. Use your detective skills to figure out the follwing:
DigitalRead

Switches are great for controlling current, as shown by our little light switch demo. But they're even better as input devices!

In previous lessons we set a pin on the microcontroller (say pin 13) to HIGH (5V) or LOW (ground, 0V) using the DigitalWrite procedure. Now we get to do the opposite. We will set the voltage on a pin to 5V or ground and then use DigitalRead to inquire whether that pin is HIGH or LOW

For our first test, we will use a wire as our switch. Turn on the Arduino and run this little sketch

/*
* Switch test program
*/
int switchPin = 2; // Switch connected to digital pin 2 void setup() // run once, when the sketch starts { Serial.begin(9600); // set up Serial library at 9600 bps pinMode(switchPin, INPUT); // sets the digital pin as input to read switch } void loop() // run over and over again { Serial.print("Read switch input: ");
Serial.println(digitalRead(switchPin)); // Read the pin and display the value
delay(100); }

You'll note that we have to tell the Arduino to set the pin as an input. This is pretty easy, use pinMode() but use INPUT instead of OUTPUT

pinMode(switchPin, INPUT);    // sets the digital pin as input to read switch

We also use the new digitalRead() procedure, which just takes as an input the pin to examine.

Serial.println(digitalRead(switchPin));    // Read the pin and display the value

The digitalRead() procedure returns a result when its done. That result is either 0 (LOW) or 1 (HIGH) depending on what it saw when it looked at the pin's voltage. In this case, we read the pin and then pass the result as an input to another procedure, println(). Sure we could use a variable to hold the result from digitalRead() and then use that variable as input to println() but this is much more succinct.

var = digitalRead(switchPin);      // read the pin and save it into var
Serial.println(var);               // print out the value stored in var

Now use a wire to alternate between connecting Pin 2 to 5V and Ground through a 100Ω resistor, and watch the serial monitor.


Fig 5.2


Switch input tied HIGH (5v)

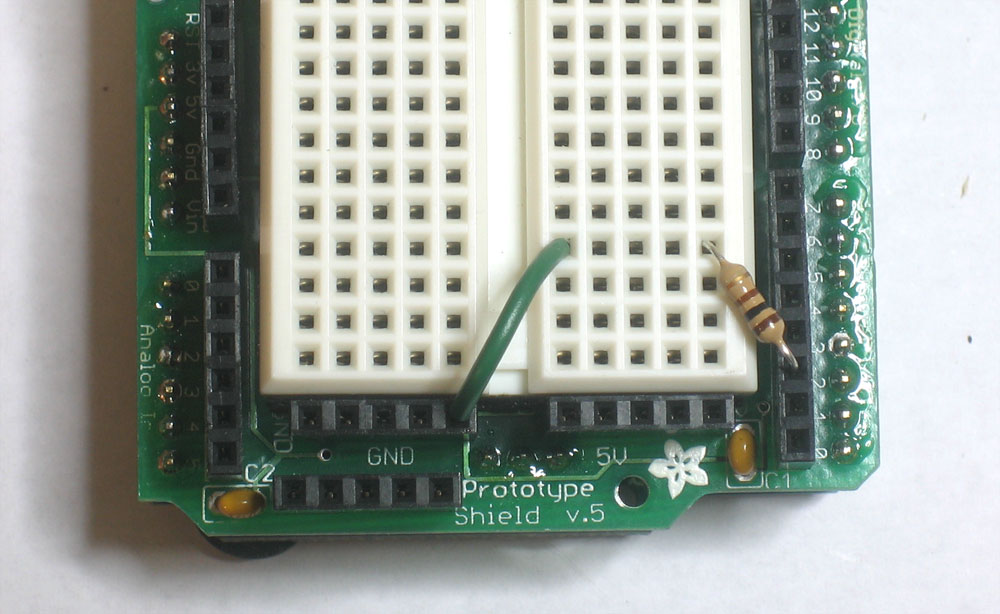

Switch input tied LOW (ground)

You should see it print out two messages depending on whether a the wire jumper connects the input to HIGH (5V) or LOW (ground) voltage. Dont forget, in digital binary land, HIGH is another word for 1 and LOW is another word for 0.

Valid inputs

The best way to completely destroy a microcontroller such as an Arduino is to feed it voltages that are much too high. Make sure your input voltages are between 0 and 5V! Never connect a 9V battery directly into an input pin, it will fry the pin for good and possibly destroy the Arduino microcontroller!

Whats this 100Ω resistor all about?

There's a 100Ω resistor we use to connect the input pin to either HIGH or LOW voltage. Why is it there? Well, lets say you accidentally set P2 to be an OUTPUT type pin, but then you connected it to 5V. If you write a LOW to the pin (0V) but its connected to HIGH (5V), you've basically caused a short circuit at that pin. This isn't very good for the pin and could damage it! The 100Ω resistor acts as a buffer, to protect the pin from short circuits.

Floating high above the clouds

Of course, connecting and disconnecting a wire is a lot of work, and we'd like to replace that with a mechanical switch. Only thing is, our switch can only connect and disconnect two wires, it can't alternate connections.

Fig 5.3 Our two alternative switch wiring possibilities

For example, in these schematics we can connect and disconnect pin 2 to 5V, or we can connect and disconnect pin 2 to ground. In both cases, as long as the button is held down, the pin is connected to a valid input voltage. When the button is released, though, pin 2 is not connected to anything. This is called a floating input voltage. Basically, it's invalid input!

Try building up one of these schematics, and trying out the switch testing sketch above. When the button is held down you should definately get the right printout. When its released, it may keep the old value, or it may change, but its certainly not reliable!


Wiring when the switch is connected to 5V


Wiring when switch is connected to ground

One solution is to get a switch that alternates connections, like this one, diagrammed here.


Fig 5.4

The problem is, these switches are suprisingly complex and 10 times more expensive than a little tactile button! Instead we use a trick called a pull-down resistor.


Fig 5.5

The pull-down resistor here is the 10K resistor. When the switch is held down, the 100Ω resistor is connected directly to 5V. When the switch is released, the 100Ω resistor is connected to the 10K resistor which pulls it down to ground.

Here's how to think of it: When you press the button and connect the 100Ω resistor to 5V, the button has a very small resistance (less than 1 Ω!), so it provides a strong pull to 5V.
The 10KΩ resistor is also connecting the 100Ω resistor to ground, but since the 10KΩ resistor has 10000 times more resistance than the button, its a very weak pull to ground and can't compete. The strong 5V connection overpowers the weak ground connection and the input pin reads HIGH.

However, when the switch is disconnected, there is no longer a strong pull to 5V. In fact, its let go completely. But there is still weak pull to ground. Despite being a weak connection, it's better than nothing and so the resistor pulls the input pin to LOW.

Build this circuit and try it out with the switch test sketch. It should be very reliable now! If its not working, make sure you have the right resistor values and that the parts are connected up properly.

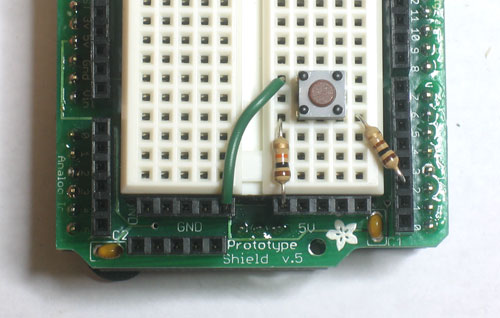

You can also use the switch to connect the input to ground, and use a resistor as a pull-up resistor.


Fig 5.6

Try this schematic as well, and verify for yourself that the button is now reliable.

Note that the strong and weak connections have nothing to do with whether the switch is configured as a pull-up or pull down. The strength of the connection comes from the fact that the button is very low resistance when held down and that the resistor is much much more resistive to current flow than the button.

Must a pullup/down resistor be 10KΩ?

You'll notice that both the Arduino schematic, and the examples here use a 10KΩ resistor as the pullup or pulldown. Is there something special about 10KΩ? Nope! While, it is pretty much univerally used as the 'default' value, most of the time you can use as high as 100KΩ or as low as 4.7KΩ. Going much lower will waste more power, going higher may give you unstable results (due to microcontroller-internals that are not that important right now).
I suggest going with 10KΩ because they are common resistor values and people reading your schematic will be more likely to understand that its 'just a pullup resistor'.

Here is a small part of the Arduino schematic, (you can see the whole thing here)


Fig 5.7

There is a switch and a resistor (Europeans use a rectangle instead of a squiggly for resistors), they are both connected to a pin on the Arduino microcontroller called RESET (in the bottom right corner)

Iffy statements

The next step is to combine inputs (buttons) and outputs (LEDs). We will make a simple digitally-controlled light. The sketch we want to write does the following

When the button is pressed, the LED turns on

Which we can rephrase more specifically as

If the button is pressed, turn on the LED.
If the button is not pressed, turn off the LED.

Here is how we will wire up the switch and LED.


Fig 5.8

Build this schematic on your protoshield

Copy and paste this sketch into the Arduino software and upload it to the Arduino. Verify that when the button is pressed, the LED turns on and when the button is released, the LED turns off.
If its not working, try using println statements to debug your project: when you press the button have it print out a message. That way you can tell if its the input half that isnt working or the output half.

/*
 *  Switch and LED test program
 */

int ledPin = 12;                // LED is connected to pin 12
int switchPin = 2;              // switch is connected to pin 2
int val;                        // variable for reading the pin status


void setup() {
  pinMode(ledPin, OUTPUT);      // Set the LED pin as output
  pinMode(switchPin, INPUT);    // Set the switch pin as input
}


void loop(){
  val = digitalRead(switchPin);   // read input value and store it in val
  if (val == LOW) {               // check if the button is pressed
    digitalWrite(ledPin, HIGH);   // turn LED on
  }
  if (val == HIGH) {              // check if the button is not pressed
    digitalWrite(ledPin, LOW);    // turn LED off
  }
}

This sketch introduces a completely new and exciting type of statement, the if statement. This is a logical statement, which you may remember from grade school math class. Basically, until now we've had the Arduino just do stuff: blink LEDs, print out messages, etc. But now we want it to make decisions.

if
(test statement)
{ statements to perform if test is True}
if
( val == LOW )
{ digitalWrite(ledPin, HIGH); }

The if statement is the first statement that is conditional, it only runs the statements if a condition is true. In this case, the conditions are "is the button pressed?" and "is the button not pressed?"

Some Conditional Tests...
Symbol Definition Usage Example
==
Equality test

if (foo == 5) {
Serial.print("Foo is equal to 5");
}

Make sure you don't confuse this for the assignment operator = !

!=
Inequality test if (digitalRead(buttonPin) != LOW) {
Serial.print("The button pin is not LOW ");
}
>
Greater-than test

if ( var2 > 10 ) {
Serial.print("Variable #2 is larger than 10");
}

<
Smaller-than test
if ( chickenstock < 10 ) {
Serial.print("We have less than 10 chickens in stock");
}
<=
Smaller-than-or-equal-to test

if ( 20 <= yearstolive ) {
Serial.print("Good news, you have at least 20 years left!");
}

>=
Greater-than-or-equal-to test

if ( kitten() >= 6 ) {
Serial.print("The kitten() procedure returned a number larger than or equal to 6");
}

Now its your turn: add another red LED and resistor to pin 11, modify the sketch so that when the button is pressed one LED is lit and the other one is off and when the button is released the first LED is off and the second LED is lit.


Fig 5.9

Try to wire up the protoshield just from the schematic. If you're having trouble, click here for a photo of the parts wired up.

Here is one possible solution sketch:

/*
 *  Switch and 2 LED test program
 */

int led1Pin = 12;               // LED #1 is connected to pin 12
int led2Pin = 11;               // LED #2 is connected to pin 11
int switchPin = 2;              // switch is connected to pin 2
int val;                        // variable for reading the pin status


void setup() {
  pinMode(led1Pin, OUTPUT);     // Set the LED #1 pin as output
  pinMode(led2Pin, OUTPUT);     // Set the LED #2 pin as output
  pinMode(switchPin, INPUT);    // Set the switch pin as input
}


void loop(){
  val = digitalRead(switchPin);    // read input value and store it in val
  if (val == LOW) {                // check if the button is pressed
    digitalWrite(led1Pin, HIGH);   // turn LED #1 on
    digitalWrite(led2Pin, LOW);    // turn LED #2 off
  }
  if (val == HIGH) {               // check if the button is not pressed
    digitalWrite(led1Pin, LOW);    // turn LED #1 off
    digitalWrite(led2Pin, HIGH);   // turn LED #2 on
  }
}



Do it...or else!

Having an LED turn on or off when a button is pressed is quite impressive, but it would be pretty odd if you had to press a button constantly to keep the TV on. What we want is an alternating action switch, where the press-and-release of a button does something, not just press-and-hold. Basically we want to test whether the button was just released, or just pressed.

To do this, we need to keep track of the button input value, to see if its changed. This is called the state of a button. When the state changes (an action occurs), that's when we want to perform an action.

/*
* Alternating switch
*/

int switchPin = 2; // switch is connected to pin 2 int val; // variable for reading the pin status int buttonState; // variable to hold the last button state void setup() { pinMode(switchPin, INPUT); // Set the switch pin as input Serial.begin(9600); // Set up serial communication at 9600bps
buttonState = digitalRead(switchPin); // read the initial state } void loop(){ val = digitalRead(switchPin); // read input value and store it in val if (val != buttonState) { // the button state has changed! if (val == LOW) { // check if the button is pressed Serial.println("Button just pressed"); } else { // the button is -not- pressed... Serial.println("Button just released"); } } buttonState = val; // save the new state in our variable }

Upload it to your Arduino and try it out, watching the serial monitor as you press and release the button.

Lets go through the new lines of code:

int buttonState;                // variable to hold the button state

This line isn't too unusual, its just a variable that is going to hold the state of the button. Since we don't know the state of the button when the Arduino is first turned on, we will leave it as unknown (uninitialized).

  buttonState = digitalRead(switchPin);   // read the initial state

In the setup() procedure, we initialize (set the initial/starting value) of the button state variable by reading the button value once we've started up and set the pin to an input.

void loop(){
  val = digitalRead(switchPin);      // read input value and store it in val

OK now to the interesting part. In the loop procedure, we begin by first checking the button pin state and storing it an temporary variable val.

  if (val != buttonState) {          // the button state has changed!
    if (val == LOW) {                // check if the button is pressed

Now we see 2 if statements that are nested, this means that we perform one test and if that test comes out true we go on to perform another test. This is more complex than a simple if statement but not much more different than the kinds of decisions we make all the time.

For example:

  if ( it is raining ) {                // look up, is there water falling on me?
    if ( I have an umbrella ) {         // check my purse
      OpenUmbrella();                   // Perform the umbrella opening procedure
    }
  }

Of course, we can't open the umbrella if we don't have one. And there's no point in checking if we have one if its not raining!

In the first if statement, we check if the current button state (HIGH or LOW) is different than the last time we looked at the button. If it is different (tested by the != inequality operator ) then we execute the next group of statements, enclosed by the {} braces.

Lets move on and examine the new statement we see, which is the exotic if-else statment.

    if (val == LOW) {                // check if the button is pressed
      Serial.println("Button just pressed");
    } else {                         // the button is -not- pressed...
      Serial.println("Button just released");
    }

This statement is easy to understand: before, we would run a test and if that test passed, we would perform the statements in the {} braces. Now we also have an alternative, which is what we should do if the test fails! Now we used to perform two tests, one for (val == LOW) and one for (val == HIGH). This code is equivalent but its a little more straightforward. If its not LOW it must be HIGH.

if
(test statement)
{ statements to perform if test is True}
else { statements to perform if test is not True}
if
( val == LOW )
{ ... }
else
{ ... }

In the if-else statement, we simply examine val to deterimine if the last digitalRead() procedure informed us that the button is currently pressed or not pressed.

  buttonState = val;                 // save the new state in our variable

Finally, we make sure that we've updated the button state variable with the current state.

Counting presses

A pretty useful techinque you'll want to add to your collection of sketch-knowledge is how to keep track of button presses. Try this sketch

/*
* Counting presses
*/

int switchPin = 2; // switch is connected to pin 2 int val; // variable for reading the pin status int buttonState; // variable to hold the button state int buttonPresses = 0; // how many times the button has been pressed void setup() { pinMode(switchPin, INPUT); // Set the switch pin as input Serial.begin(9600); // Set up serial communication at 9600bps
buttonState = digitalRead(switchPin); // read the initial state } void loop(){ val = digitalRead(switchPin); // read input value and store it in val if (val != buttonState) { // the button state has changed! if (val == LOW) { // check if the button is pressed buttonPresses++; // increment the buttonPresses variable
Serial.print("Button has been pressed ");
Serial.print(buttonPresses);
Serial.println(" times"); } } buttonState = val; // save the new state in our variable }

We've added one new thing in this sketch, which is the ++ operator. Simply, the statement "buttonPresses++" increments (adds 1 to) the buttonPresses variable. This is a shortcut for "buttonPresses = buttonPresses + 1".

Design challenge, part 1

The phone rings, and you pick it up!

Voice: Hello, this is the president of Blinky Lite Fun Company Inc., a company that specializes in blinky light products. We're noticing that a majority of our customers ride bicycles and they'd like to be more safe. We're thinking of offering a bicycle safety light and we hired an electrical engineer to design a light for us. However, he decided to go on a week-long kite surfing expedition and has left us in the lurch.
Here is the schematic we found on his desk:

All the bike light has to do is turn on when the button is clicked and turn off the next time the button is clicked.
Can we hire you to finish the project?

You: Sure, this is not a problem, I'll send you over a contract and get started as soon as the documents are signed!

The contracts are faxed and signed and now it's time to do your job.

Here is a video demonstrating the functionality the customer wants

Here is one possible solution sketch:

/*
 *  Bike light, revision 1
 */
int led1Pin = 12;
int led2Pin = 11;
int led3Pin = 10;
int led4Pin = 9;
int led5Pin = 8;


int switchPin = 2;              // switch is connected to pin 2


int val;                        // variable for reading the pin status
int buttonState;                // variable to hold the button state
int lightMode = 0;              // Is the light on or off?


void setup() {
  pinMode(switchPin, INPUT);    // Set the switch pin as input

  pinMode(led1Pin, OUTPUT);
  pinMode(led2Pin, OUTPUT);
  pinMode(led3Pin, OUTPUT);
  pinMode(led4Pin, OUTPUT);
  pinMode(led5Pin, OUTPUT);

  Serial.begin(9600);           // Set up serial communication at 9600bps
  buttonState = digitalRead(switchPin);   // read the initial state
}


void loop(){
  val = digitalRead(switchPin);      // read input value and store it in val

  if (val != buttonState) {          // the button state has changed!
    if (val == LOW) {                // check if the button is pressed
      if (lightMode == 0) {          // light is off
        lightMode = 1;               // light is on!
        digitalWrite(led1Pin, HIGH);
        digitalWrite(led2Pin, HIGH);
        digitalWrite(led3Pin, HIGH);
        digitalWrite(led4Pin, HIGH);
        digitalWrite(led5Pin, HIGH);
      } else {
        lightMode = 0;               // light is on!
        digitalWrite(led1Pin, LOW);
        digitalWrite(led2Pin, LOW);
        digitalWrite(led3Pin, LOW);
        digitalWrite(led4Pin, LOW);
        digitalWrite(led5Pin, LOW);
      }
    }
  }
  buttonState = val;                 // save the new state in our variable
}



Brooklyn Debounce

The phone rings, and you pick it up!

Voice: Hello, this is the president of the Blinky Lite Fun Company Inc., thanks for getting us that bicycle light prototype so quickly. It works pretty well, but we have found a bug in your design.
It turns out that every once in a while, when we press the button, the light doesn't turn on or off. Here is a video demonstrating the problem. Can you fix this? We'll send you the check next week, thanks!

You play a little bit with the bike light prototype and find that, yes, this is a problem. (You should try it out, although depending on your button you may or may not see this problem occur, it is a sneaky bug)

You spend some time looking over your code but can't seem to find the problem. Turns out this is not a software (sketch) problem, but actually a mechanical problem.
Inside the little tactile switch is a small disc spring. When you push the button you squeeze the spring so that it makes contact with the two wire connections. When you release, the spring bounces back. This works great except that, well, the spring is springy. And that means that once in a while, when you press the button it bounces around a little in the switch, making and breaking contact a few times before settling.

If you have a oscilloscope, you can look at the input to the Arduino pin in detail to see the "bouncing" in action. Here is a screencapture from my Tektronix scope

The X axis is time. Each dotted line lengthwise indicates 250 microseconds (.25 milliseconds) The Y axis is voltage. The center is 0 volts (ground) and each dotted line indicates a change of 2V.

In this image you can see how when the button is released, the voltage into the input pin starts at ground (LOW), then there are some spikes and finally it goes up to 5V (HIGH). Most of the time, there are no spikes, but once in a while they do occur. This is called a contact bounce!

Remember! The bounces don't occur when the button is held down or not pressed. They only occur during the press or release of a button.

This causes our sketch to hiccup because every once in a while, there's a bounced switch, and when the Arduino checks the pin it thinks that the user pressed and depressed the switch many times. Thus the light turns on for a few microseconds, and then turns off.

How to solve this problem? Well there are some very fancy techniques one can use to debounce a button but there's also a dead-simple one: adding a delay.
You'll notice that the bounces only occur for half a millisecond. That means that we can check the button twice, at least 1 millisecond apart. If the two readings are different, that means there could have been a bounce. If the two readings are the same, that means that the switch has settled on the value. We'll require that the two readings must read the same before we perform the rest of the sketch. We'll also use a much more generous 10 millisecond delay, which will take care of even the most bouncy of switches.

/*
 *  Bike light, debounced
 */

int switchPin = 2;              // switch is connected to pin 2
int led1Pin = 12;
int led2Pin = 11;
int led3Pin = 10;
int led4Pin = 9;
int led5Pin = 8;

int val;                        // variable for reading the pin status
int val2;                       // variable for reading the delayed/debounced status
int buttonState;                // variable to hold the button state

int lightMode = 0;              // Is the light on or off?

void setup() {
  pinMode(switchPin, INPUT);    // Set the switch pin as input

  pinMode(led1Pin, OUTPUT);
  pinMode(led2Pin, OUTPUT);
  pinMode(led3Pin, OUTPUT);
  pinMode(led4Pin, OUTPUT);
  pinMode(led5Pin, OUTPUT);

  Serial.begin(9600);                // Set up serial communication at 9600bps
  buttonState = digitalRead(switchPin);   // read the initial state
}

void loop(){
  val = digitalRead(switchPin);      // read input value and store it in val
  delay(10);                         // 10 milliseconds is a good amount of time
  val2 = digitalRead(switchPin);     // read the input again to check for bounces
  if (val == val2) {                 // make sure we got 2 consistant readings!
    if (val != buttonState) {          // the button state has changed!
      if (val == LOW) {                // check if the button is pressed
        if (lightMode == 0) {          // is the light off?
          lightMode = 1;               // turn light on!
          digitalWrite(led1Pin, HIGH);
          digitalWrite(led2Pin, HIGH);
          digitalWrite(led3Pin, HIGH);
          digitalWrite(led4Pin, HIGH);
          digitalWrite(led5Pin, HIGH);
        } else {
          lightMode = 0;               // turn light off!
          digitalWrite(led1Pin, LOW);
          digitalWrite(led2Pin, LOW);
          digitalWrite(led3Pin, LOW);
          digitalWrite(led4Pin, LOW);
          digitalWrite(led5Pin, LOW);
        }
      }
    }
    buttonState = val;                 // save the new state in our variable
  }
}

Here is the important, new section of code we added:

int val;                        // variable for reading the pin status
int val2;                       // variable for reading the delayed/debounced status
int buttonState;                // variable to hold the button state

void loop(){
  val = digitalRead(switchPin);      // read input value and store it in val
  delay(10);                         // 10 milliseconds is a good amount of time
  val2 = digitalRead(switchPin);     // read the input again to check for bounces
  if (val == val2) {                 // make sure we got 2 consistant readings!
    if (val != buttonState) {          // the button state has changed!

Now we have used a delay() procedure call to space out our input readings. We take two readings and compare them to make sure that the switch has settled on whatever value we read. If there's a bounce, it'll get filtered out by our delay. Try it out and see if it helps make your bike light more reliable.

Note that this line

    buttonState = val;                 // save the new state in our variable

is in the if statement that makes sure the two input reads are the same. You should not consider the val variable to hold valid information unless you've verified it against the second read, val2. Otherwise you will get strange performance

Design Challenge, part 2

The phone rings, and you pick it up!

Voice: Hello, this is the president of Blinky Lite Fun Company Inc., your correction has solved our flaky light problem. The bike light works great. Only thing is, its just not, well, blinky enough! And this is the Blinky Lite Fun Company Inc. Can you make the light more blinky? We'll send you the check next week, kthxbye!

Well, OK that shouldn't be too hard. You modify the debounced sketch so it looks like this:

/*
 *  Bike light, blinky
 */

int switchPin = 2;              // switch is connected to pin 2
int led1Pin = 12;
int led2Pin = 11;
int led3Pin = 10;
int led4Pin = 9;
int led5Pin = 8;

int val;                        // variable for reading the pin status
int val2;                       // variable for reading the delayed/debounced status
int buttonState;                // variable to hold the button state

int lightMode = 0;              // Is the light on or off?

void setup() {
  pinMode(switchPin, INPUT);    // Set the switch pin as input

  pinMode(led1Pin, OUTPUT);
  pinMode(led2Pin, OUTPUT);
  pinMode(led3Pin, OUTPUT);
  pinMode(led4Pin, OUTPUT);
  pinMode(led5Pin, OUTPUT);

  Serial.begin(9600);                // Set up serial communication at 9600bps
  buttonState = digitalRead(switchPin);   // read the initial state
}

void loop(){
  val = digitalRead(switchPin);      // read input value and store it in val
  delay(10);                         // 10 milliseconds is a good amount of time
  val2 = digitalRead(switchPin);     // read the input again to check for bounces
  if (val == val2) {                 // make sure we got 2 consistant readings!
    if (val != buttonState) {          // the button state has changed!
      if (val == LOW) {                // check if the button is pressed
        if (lightMode == 0) {          // is the light off?
          lightMode = 1;               // turn light on!

          digitalWrite(led1Pin, HIGH);
          digitalWrite(led2Pin, HIGH);
          digitalWrite(led3Pin, HIGH);     // blink on!
          digitalWrite(led4Pin, HIGH);
          digitalWrite(led5Pin, HIGH);

          delay(100);

          digitalWrite(led1Pin, LOW);
          digitalWrite(led2Pin, LOW);
          digitalWrite(led3Pin, LOW);     // blink off!
          digitalWrite(led4Pin, LOW);
          digitalWrite(led5Pin, LOW);

          delay(100);

        } else {
          lightMode = 0;               // turn light off!
          // No need to do anything because the light is 'off' when it finishes with mode 1
        }
      }
    }
    buttonState = val;                 // save the new state in our variable
  }
}


You are feeling pretty proud because you remembered that you did not have to turn off the LEDs when entering the off mode: they're off at the end of the blinky code that is run when lightMode is 1.

Upload this sketch to your bike light and try it out.

The trick here is that you want to split up your loop() procedure into two sections. The first section will do all the button checking and debouncing stuff. It will also determine whether the button state has changed and if so, it will change the lightMode variable appropriately. Once that dirty work has been done, the next section of code will examine the lightMode variable and then perform the correct actions for that mode.

Try to fix the code above so it does the right thing.

Here is one solution:

/*
 *  Bike light, revision 3: blinky
 */

int switchPin = 2;              // switch is connected to pin 2
int led1Pin = 12;
int led2Pin = 11;
int led3Pin = 10;
int led4Pin = 9;
int led5Pin = 8;

int val;                        // variable for reading the pin status
int val2;                       // variable for reading the delayed status
int buttonState;                // variable to hold the button state

int lightMode = 0;              // What mode is the light in?

void setup() {
  pinMode(switchPin, INPUT);    // Set the switch pin as input

  pinMode(led1Pin, OUTPUT);
  pinMode(led2Pin, OUTPUT);
  pinMode(led3Pin, OUTPUT);
  pinMode(led4Pin, OUTPUT);
  pinMode(led5Pin, OUTPUT);

  Serial.begin(9600);           // Set up serial communication at 9600bps
  buttonState = digitalRead(switchPin);   // read the initial state
}

void loop(){
  val = digitalRead(switchPin);      // read input value and store it in val
  delay(10);                         // 10 milliseconds is a good amount of time
  val2 = digitalRead(switchPin);     // read the input again to check for bounces
  if (val == val2) {                 // make sure we got 2 consistant readings!
    if (val != buttonState) {          // the button state has changed!
      if (val == LOW) {                // check if the button is pressed
        if (lightMode == 0) {          // light is off
          lightMode = 1;               // turn light on!
        } else {
          lightMode = 0;               // turn light off!
        }
      }
    }
    buttonState = val;                 // save the new state in our variable
  }

  // Now do whatever the lightMode indicates
  if (lightMode == 1) {
    digitalWrite(led1Pin, HIGH);
    digitalWrite(led2Pin, HIGH);
    digitalWrite(led3Pin, HIGH);
    digitalWrite(led4Pin, HIGH);
    digitalWrite(led5Pin, HIGH);
    delay(100);
    digitalWrite(led1Pin, LOW);
    digitalWrite(led2Pin, LOW);
    digitalWrite(led3Pin, LOW);
    digitalWrite(led4Pin, LOW);
    digitalWrite(led5Pin, LOW);
    delay(100);
  }
  // If lightmode is 0, we dont have to do anything because the LEDs are already off!
}



Design Challenge, part 3

The phone rings, and you pick it up!

Voice: Hello, this is the president of Blinky Lite Fun Company Inc., I love the blinking light, its just so me! But, OMG, our competitor just brought a bike light into the market that has 4 modes. We can't compete with them in the free market if we only have this lame bike light. We need more blinky, flashy light modes. Also, please make our logo bigger. We'll send you the check next week, for reals!

The final design challenge is to take the sketch from Design Challenge 2 and upgrade it to have at least 4 modes: off, all-on, blinking LEDs, and 'wave'.

Here is an example of the finished project code

/*
 *  Bike light, final version
 */

int switchPin = 2;              // switch is connected to pin 2
int led1Pin = 12;
int led2Pin = 11;
int led3Pin = 10;
int led4Pin = 9;
int led5Pin = 8;

int val;                        // variable for reading the pin status
int val2;                       // variable for reading the delayed status
int buttonState;                // variable to hold the button state

int lightMode = 0;              // What mode is the light in?

void setup() {
  pinMode(switchPin, INPUT);    // Set the switch pin as input

  pinMode(led1Pin, OUTPUT);
  pinMode(led2Pin, OUTPUT);
  pinMode(led3Pin, OUTPUT);
  pinMode(led4Pin, OUTPUT);
  pinMode(led5Pin, OUTPUT);

  Serial.begin(9600);           // Set up serial communication at 9600bps
  buttonState = digitalRead(switchPin);   // read the initial state
}

void loop(){
  val = digitalRead(switchPin);      // read input value and store it in val
  delay(10);                         // 10 milliseconds is a good amount of time
  val2 = digitalRead(switchPin);     // read the input again to check for bounces
  if (val == val2) {                 // make sure we got 2 consistant readings!
    if (val != buttonState) {          // the button state has changed!
      if (val == LOW) {                // check if the button is pressed
        if (lightMode == 0) {          // if its off
          lightMode = 1;               // turn lights on!
        } else {
          if (lightMode == 1) {        // if its all-on
            lightMode = 2;             // make it blink!
          } else {
            if (lightMode == 2) {      // if its blinking
              lightMode = 3;           // make it wave!
            } else {
			  if (lightMode == 3) { //  if its waving,
                lightMode = 0;           // turn light off!
              }
			}
          }
        }
      }
    }
    buttonState = val;                 // save the new state in our variable
  }

  // Now do whatever the lightMode indicates
  if (lightMode == 0) { // all-off
    digitalWrite(led1Pin, LOW);
    digitalWrite(led2Pin, LOW);
    digitalWrite(led3Pin, LOW);
    digitalWrite(led4Pin, LOW);
    digitalWrite(led5Pin, LOW);
  }

  if (lightMode == 1) { // all-on
    digitalWrite(led1Pin, HIGH);
    digitalWrite(led2Pin, HIGH);
    digitalWrite(led3Pin, HIGH);
    digitalWrite(led4Pin, HIGH);
    digitalWrite(led5Pin, HIGH);
  }

  if (lightMode == 2) { // blinking
    digitalWrite(led1Pin, HIGH);
    digitalWrite(led2Pin, HIGH);
    digitalWrite(led3Pin, HIGH);
    digitalWrite(led4Pin, HIGH);
    digitalWrite(led5Pin, HIGH);
    delay(100);
    digitalWrite(led1Pin, LOW);
    digitalWrite(led2Pin, LOW);
    digitalWrite(led3Pin, LOW);
    digitalWrite(led4Pin, LOW);
    digitalWrite(led5Pin, LOW);
    delay(100);
  }
  if (lightMode == 3)  { // "wave"
    digitalWrite(led5Pin, LOW);
    digitalWrite(led1Pin, HIGH);
    delay(50);
    digitalWrite(led1Pin, LOW);
    digitalWrite(led2Pin, HIGH);
    delay(50);
    digitalWrite(led2Pin, LOW);
    digitalWrite(led3Pin, HIGH);
    delay(50);
    digitalWrite(led3Pin, LOW);
    digitalWrite(led4Pin, HIGH);
    delay(50);
    digitalWrite(led4Pin, LOW);
    digitalWrite(led5Pin, HIGH);
    delay(50);
    digitalWrite(led5Pin, LOW);
  }
}

For extra credit, come up with with some more flashy modes, and post your video to the forums

For triple-word-extra credit, use the 9V battery pack to power your Arduino bike light and duct tape it to your shirt!

Conclusion
blah blah blah



April 27, 2012 11:17
