x0xb0x Build Manual Parts List
Parts List (Bill of Materials)

Before you go crazy soldering stuff together, first verify you have all the parts. If there are any missing, make sure to email support@adafruit.com for replacements!

Not all distributors are mentioned here, and in most cases the parts can be found elsewhere but this is where I've found them in the US.

BCBOX has made a nice excel spreadsheet check the forums!

Large parts
Description
Qty
Manufacturer & Datasheet Distributor
  ABS Case
1
Pactec
PT-10

Mouser, PacTec

  Set of main and I/O panels
1
Custom Adafruit
Set of main and I/O PCBs
1
Custom Adafruit

ATmega162 microcontroller

IC3

1
Atmega162-16PU

Digikey
Mouser

For programmed version, Adafruit

9VAC 300-500mA wall wart

2.1mm barrel adaptor.

1
Generic

Jameco

Farnell (9VAC 300mA UK)
Farnell (9VAC 600mA UK)

Farnell (9VAC 500mA Euro)

  x0xb0x serial tag 1   Only with purchased kits
Active parts bag
Description Part number
Qty
Manufacturer & Datasheet Distributor

2SA733P

TO-92 PNP transistor

Q1* Q2* Q8 Q9 Q10 Q27 Q31 Q33 Q36 Q38
10
Fairchild 2SA733P Mouser

2SC536F

TO-92 NPN transistor

These will have "536F" somewhere on the body

Q3* Q4* Q5 Q11 Q13 Q23 Q14 Q15 Q16 Q17 Q18 Q19 Q20 Q24 Q25 Q29 Q30 Q32 Q34 Q35 Q37 Q40 Q41 Q50
24
Rare

2SK30 JFET

Some kits have a 2SK30AY and a 2SK30AO, see the instructions for which one to put where.

Q28 Q39
2

Rare


2SC2291 5-SIP matched pair with common base Q22
1
Rare
2SC1583 5-SIP matched pair with common emitter Q12 Q21 Q26
3
Rare

LA4140 9-SIP

Headphone amplifier

IC14
1
Rare

BA6110 (9-SIP)

Operational Transconductance Amplifier

IC15B*
1
Rare

BA662A (9-SIP)

Operational Transconductance Amplifier

IC15A*
(optional, not included)
Extremely rare

7805 (TO-220)

5V, 1A voltage regulator

IC20
1
78M05

Mouser
Digikey

Nearly any distributor

7806 (TO-92)

6V 100mA voltage regulator

IC21
1
78L06 Mouser
Digikey

LM336Z-5.0 (TO-92)

5V precision voltage reference

IC22
1
LM336Z-5.0 Digikey
Mouser
FT232 USB chip IC25
1
FT232BM Mouser

6MHz ceramic resonator

Might be orange colored

XTAL2
1

Abracon AWCR-6.00MD

(Or any 6.0 MHz ceramic resonator)

Mouser
Digikey
16MHz ceramic resonator XTAL1
1
Abracon AWCR-16.00MD Mouser
Digikey

1N4001

Input voltage doubling

D40, D41, D42, D43
4
Generic 1N4001

Digikey
Mouser

Nearly any distributor

1N4148

D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D25 D26 D28 D29 D30 D31 D44 D45 D46 D47 D48 D24 D27 D35 D36 D32 D33 D34 D37

29
Generic 1N4148

Mouser
Digikey

Nearly any distributor

LED packet
Description Part number
Qty
Manufacturer & Datasheet Distributor
Red 5mm LED LED1-LED40
40
Generic

0.24" LED standoff

Other LEDs may require different sizes

LED1*-LED40*
40
VCC STD240B Mouser

5% resistor

Value may vary depending on LED type and brightness

R203 R204 R205 R208 R211 R213 R215 R217 R221 R222 R223 R227 R228 R229 R234 R237 R238 R239 R241 R242 R243 R244 R245 R246 R248 R249 R250 R251 R252 R253 R256 R258 R260 R261 R262 R264 R265 R266 R267 R268
40
Generic
DIP tube
Description Part number
Qty
Manufacturer & Datasheet Distributor
AN6562 8-DIP dual Op-Amp IC11, IC23
2
Rare

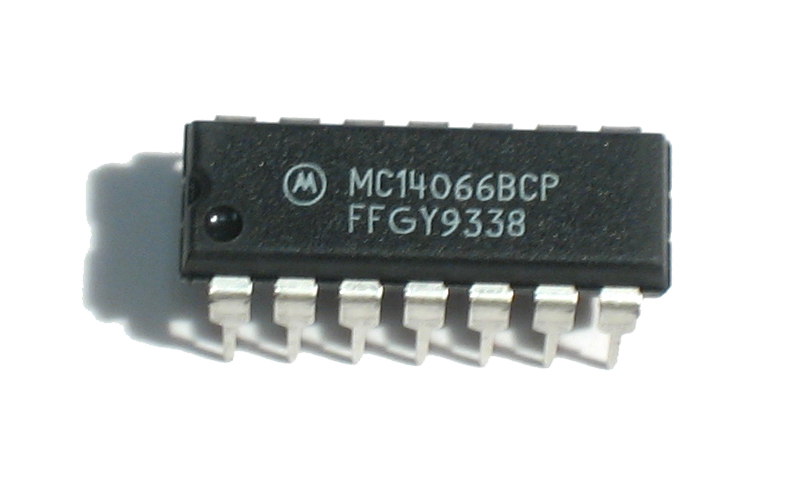

4066 analog switch

Has "4066" somewhere on the body

IC12
1
Generic Digikey
Mouser

74HC174 or 74AC174

Has "174" somewhere on the body

IC9
1
Generic Digikey
Mouser

74HC126

Has "126" somewhere on the body

IC1
1
Generic Digikey
Mouser
(image soon!)

74AC165 or 74HC165

Has "165" somewhere on the body

IC16 IC17 IC18
3
Generic Digikey
Mouser

74HC595

Has "595" somewhere on the body

IC4 IC5 IC6 IC7 IC8
5
Generic Digikey
Mouser

4N37 optoisolator

Might be white-colored

IC24
1
Generic Mouser
Digikey

25C33 or AT25320 32Kb (4KB) EEPROM

May be named something else, look for "25" and "320" or "33" or "32" on the body

IC2
1
CAT2532 Digikey
Mouser
Mechanical Parts bag
Description Part number
Qty
Manufacturer & Datasheet Distributor
Heat sink (TO-220)

IC20'

1
Aavid 574502B00000G Mouser
Digikey
Allied
40-pin DIP socket IC3'
1

AMP 390262-5

(Any 40 pin socket will do)

Mouser
8-pin DIP socket IC2*
1

AMP 390261-2

(Any 8 pin socket will do)

Mouser
1/4" stereo jack MIXOUT MIXIN HEADPHONE
3
Neutrik
NYS216
Mouser
Allied
1/8" jack CV GATE
2
CUI MJ-CP3536N Digikey

2.1mm power jack

Power input

POWER
1
CUI PJ-202AH Digikey

USB type-B jack

USB communication

USB
1

Kobiconn 154-2442-E

(Any USB type-B through hole jack is OK)

Mouser

MIDI/DINSYNC jack

MIDI In/Out/Thru and DINSYNC

DIN1 DIN2 DIN3 DIN4
4

CUI SDS-50J

(Nearly any MIDI jack is OK as long as the front pins match)

Digikey

Toggle switch

Waveform saw/square selection

SW1
1
NKK B12AB-RO Mouser

Rotary encoder

Tempo adjustment

S2
1
CTS 290VAA5F201B2 Digikey

16 position rotary switch

Bank and Mode selection

S3 S4
2
Grayhill 25LB22-H Digikey
Newark

Tact switch

For keyboard switches

S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 S16 S17 S18 S19 S20 S21 S22 S23 S24 S25 S26 S27
23

E-Switch TL1100F160Q

"standard 12mm tact switch"

Digikey
2K (202) trim potentiometer TM6
1

Vishay CT6EP202

Any ceramic trim-pot with the same pinout is OK

Digikey
5K (502) trim potentiometer TM5
1

Vishay CT6EP502

Any ceramic trim-pot with the same pinout is OK

Digikey
50K (503) trim potentiometer TM4
1

Vishay CT6EP503

Any ceramic trim-pot with the same pinout is OK

Digikey
500K (504) trim potentiometer TM3
1

Vishay CT6EP504

Any ceramic trim-pot with the same pinout is OK

Digikey
50K D (log) potentiometer VR3 VR5 VR8
3
Panasonic EVU-F2LFL3D54 Digikey
50K B (linear) potentiometer VR2 VR7
2
Panasonic EVU-F2LFL3B54 Digikey
50K B (linear) dual potentiometer VR4
1
Alpha RV112BCF-40-25F-B54 Mouser

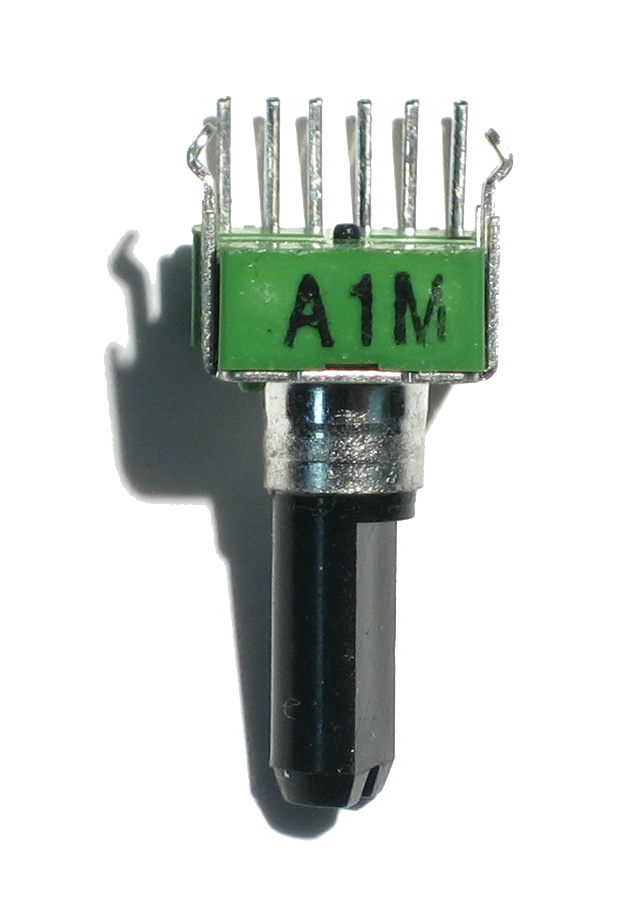

1Meg A (log) dual potentiometer VR6
1
Alpha RV112BCF-40-25F-A16 Mouser
Switch cap (white)
8
ITT PE/WHT Digikey
Newark
Switch cap (black)
15
ITT PE/BLK Digikey
Newark
Potentiometer knob VR2' VR3' VR4' VR5' VR6' VR7' VR8' S2'
8
Eagle Plastic Devices
Soft Touch Knob
Mouser
Switch knob S3' S4'
2
Davies 1510AH

Mouser
Allied

15/32" x 1/4" x 4-40 standoff
3
Generic McMaster
3/8" x 1/4" x 4-40 standoff
4
Generic McMaster
4-40 lock washer
7
Generic McMaster
4-40 washer
4
Generic McMaster
4-40 x 1/4" hex button
7
Generic McMaster
4-40 x 1/4" phillips button
7
Generic McMaster

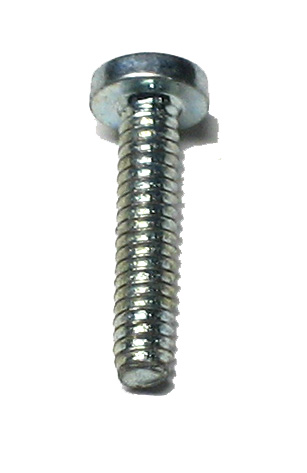

4-40 x 1/2" phillips cheesehead/fillister
4
Comes with case McMaster
Rubber feet
4
Comes with case
6 wire jumper ribbon cable
OR
9 wire and 6 wire


4
OR
2 x 9c and 1x 6c
Molex WM09-06, WM06-06, WM03-06 Digikey
Passive components bag



Description Part number
Qty
Manufacturer & Datasheet Distributor

10 ohm 5% resistor

Brown Black Black Gold

R186 R164
2
Generic Any
22 ohm 5% resistor
Red Red Black Gold
R20 R150
2
Generic Any
27 ohm 5% resistor
Red Violet Black Gold
R6 R7
2
Generic Any
100 ohm 5% resistor
Brown Black Brown Gold

R1 R95 R130, R132 R136 R152

R16 (in older kits)

6 or 7
Generic Any
150 ohm 5% resistor
Brown Green Brown Gold
R16 (in newer kits) 1 Generic Any

220 ohm 5% resistor

Red Red Brown Gold

R13 R14 R15 R18 R19
5
Generic Any

470 ohm 5% resistor

Yellow Violet Brown Gold

R12
1
Generic Any

1K 5% resistor

Brown Black Red Gold

R2 R17 R137 R161
4
Generic Any

1.5K 5% resistor

Brown Green Red Gold

R8
1
Generic Any

1.8K 5% resistor

Brown Grey Red Gold

R179
1
Generic Any

2.2K 5% resistor

Red Red Red Gold

R21 R22 R23 R24 R67 R68 R69 R70 R71 R98 R104 R107 R108 R124 R125 R126 R133 R162 R178
19
Generic Any

4.7K 5% resistor

Yellow Violet Red GOld

R9 R135
2
Generic Any

6.8K 5% resistor

Blue Grey Red Gold

R3
1
Generic Any

10K 5% resistor

Brown Black Orange Gold

R10 R11 R34 R36 R47 R61 R64, R65 R94 R96 R97 R101 R105 R109, R112 R115 R116 R142 R143 R144 R145 R148 R149 R157 R158 R160
54
Generic Any

22K 5% resistor

Red Red Orange Gold

R45 R60 R110 R111 R117 R120 R129 R134 R146 R151

10
Generic Any

33K 5% resistor

Orange Orange Orange Gold

R159
1
Generic Any

47K 5% resistor

Yellow Violet Orange Gold

R46 R119 R127 R155
4
Generic Any

68K 5% resistor

Blue Grey Orange Gold

R138
1
Generic Any

100K 5% resistor

Brown Black Yellow Gold

R25 R26 R27 R28 R35 R59 R66 R72 R73 R92 R93 R99 R102 R113 R114 R118 R122 R139 R140 R141 R153 R154 R156 R165
24
Generic Any

220K 5% resistor

Red Red Yellow Gold

R62 R63 R103 R121 R128 R131 R235 R236
8
Generic Any

1MEG 5% resistor

Brown Black Green Gold

R91 R200
2
Generic Any

1.5MEG 5% resistor

Brown Green Green Gold

R123
1
Generic Any

2.4K 1% resistor

Red Yellow Black Brown Brown

R5
1
Generic Any

5.6K 1% resistor

Green Blue Black Brown Brown

R4
1
Generic Any

24.0K 1% resistor

Red Yellow Black Red Brown

R106
1
Generic Any
200K 1% resistor R74, R75, R76, R77, R78, R79, R80, R81, R82, R83, R84, R85, R86, R87, R88, R89, R90
17
Generic Any

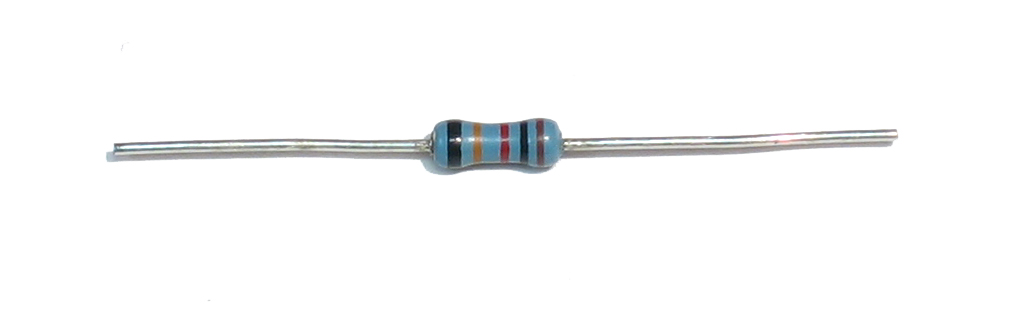

1K PTC Thermistor

Brown Black Red Brown Green

R100A, R100B
2
Microohm LPTC12T21001 Adafruit
0.1uF (104) ceramic capacitor C1 C2 C4 C6 C103 C104 C106 C107 C108 C109 C110 C111 C112 C113 C202 C204
16
AVX SR205E104MAR

Mouser
Digikey

1.0uF (105) tantalum capacitor C42 C62
2
Kemet T350A105K035AT Digikey
Mouser
.001uF (2A102K) polyester capacitor C34 C100 C101
3
Xicon PM2A102K Mouser
.0068uF (2A682K) polyester capacitor C47
1
Xicon PF2A682K Mouser
.01uF (2A103K) polyester capacitor C10 C20 C21 C33 C46
5
Xicon PM2A103K Mouser
.018uF (2A183K) polyester capacitor C18
1
PF2A183K Mouser
.033uF (2A333K or J) polyester capacitor C19 C24 C26 C36 C201
5
PM2A333K Mouser
.047uF (2A473K) polyester capacitor C54
1
PM2A473K Mouser
.068uF (2A683K) polyester capacitor C45
1
PF2A683K Mouser
.1uF (2A104K) polyester capacitor C25 C27 C41
3
PM2A104K Mouser
.22uF (2A224K) polyester capacitor C35
1
PM2A224K Mouser
1.0uF 50V electrolytic capacitor C11 C13 C14 C15 C17 C22 C23 C29 C38 C105 C58 C59 C56
13
Generic Mouser
2.2uF 50V electolytic capacitor C51
1
Generic Mouser
10uF 16V (or 35V) electrolytic capacitor C16 C30 C31 C32 C37 C40 C50 C52 C60 C61 C72 C203 C205
13
Generic Mouser
47uF 10V electrolytic capacitor C28 C44 C53 C55
4
Generic Mouser
100uF 10V electrolytic capacitor C48 C49 C102
3
Generic Mouser
100uF 25V electrolytic capacitor C7, C8
2
Generic Mouser
1000uF 10V electrolytic capacitor C43
1
Generic Mouser
2200uF 16V electolytic capacitor C3, C5
2
Generic Mouser
